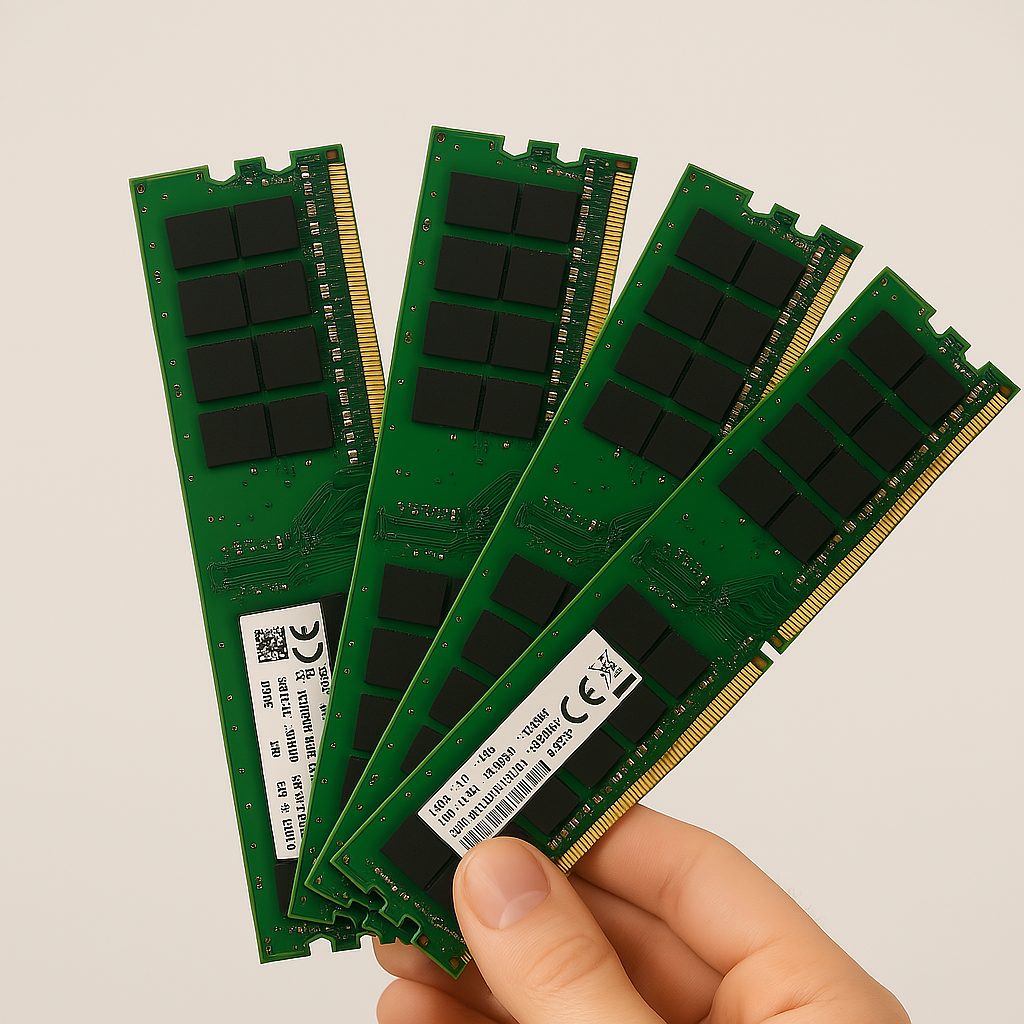

ECC RAM: Server RAM with error correction

Security and reliability are the be-all and end-all of server systems. Memory errors can lead to crashes, system failures and therefore also to data loss and a standstill in business operations. In the worst cases, this can be very costly for a company. However, professional hardware would not be labelled as such if it did not have some advantages over consumer devices. ECC RAM is no exception: the Error Correction Code offers a technology that recognises memory errors and (at best) corrects them before damage occurs. There are different variants such as DDR4 ECC RAM, Reg ECC and DDR3 ECC RAM, which are used depending on the system requirements. But what exactly are the advantages of ECC RAM and how do ECC RAM modules actually work?

ECC RAM or non-ECC RAM - that is the question here

Let's first look at the abbreviation ‘ECC’: This stands for ‘Error Correction Code’, but is also referred to as ‘Error Correcting Code’ or ‘Error Checking & Correcting’. Regardless of the name, ultimately it all comes down to the same thing, namely that it is a RAM module that has this technology. Data to be read or transferred is checked for errors, whereby parity bits are saved in order to identify and rectify recognised errors.

It is particularly important to note that there is not only a difference between PC and server memory, but ECC RAM modules are also divided into different memory types with different properties. For example, there is UDIMM ECC for servers - even if this is not widely used. UDIMM stands for Unbuffered Dual Inline Memory Module, which means that the memory communicates directly - without additional registers for stabilisation - with the memory controller of the CPU. These modules are mainly used in smaller servers, workstations or for special applications.

RDIMM (Registered Dual Inline Memory Module) is much better known and more frequently used. The Registered DIMM uses additional register chips that sit between the memory controller and the DRAM chips and help to stabilise the signals. This reduces the electrical load and ensures that the system offers high reliability and greater scalability. RDIMM ECC modules are used, for example, in database servers, enterprise architectures or cloud systems.

Maximum performance for high performance servers is achieved with LRDIMMs (Load-Reduced Dual Inline Memory Modules). The further development of RDIMMs uses Isolation Memory Buffers (iMB) instead of registers, which further reduce the electrical load and enable a higher memory capacity. Load-reduced DIMMs therefore not only offer increased memory capacity (per module), but also lower electrical loads, higher clock rates and optimised performance. They are therefore primarily used in areas such as HPC (high-performance computing), AI servers or data centres with a scientific background.

Errors in server RAM: one of the most common causes of data problems

Without ECC technology, the problem would be that various types of errors in RAM could lead to major problems. If these went unnoticed, this would pose a huge risk to business-critical applications. Some of the most common memory errors are

Electrical faults

Voltage fluctuations or voltage problems such as those caused by irregular power supply (e.g. power outages, fluctuations in the grid), can lead to memory cells being incorrectly read or overwritten. Even if it is only a few of the thousands of memory cells and transistors in the memory: If a RAM module is affected and would not have error correction, this can lead to incorrect data processing and saving and therefore, in the worst case, to a system crash.

Temperature changes

Whether summer or winter, day or night - servers usually work under extreme conditions anyway, such as the high temperatures in the server room. Heat and cold can of course also affect the functioning of memory chips. If the RAM modules become too hot, the material can physically change, which impairs conductivity and can lead to data errors. In combination with the CPU and mainboard, these errors are also recognised and, at best, corrected.

Wear and ageing

Even professional hardware does not last forever and - although it is designed for 24/7 operation and exceptional longevity - individual memory cells can wear out over time due to the countless read and write operations. Here too, ECC recognises whether the individual memory cells are working reliably and compensates for these errors before they have a negative impact on system performance.

Cosmic radiation

It may sound a little crazy, but cosmic radiation is sometimes a ‘real threat’ to server memory. High-energy particles from space can penetrate the atmosphere and hit electronic components. If one of these charged particles hits a memory bit, it can change its state from 0 to 1 or vice versa - a so-called bit flip. This was researched in more detail at the beginning of the 1970s. Such errors happen rarely, as they usually only affect very high locations, but in large data centres with millions of memory modules, the probability that data errors can occur increases. Today, this phenomenon is taken into account and ECC technology is used as a tool for this purpose.

However, it is important to note that even if the probability of errors can be significantly reduced and system failures minimised in this way, not all memory errors can be completely eliminated. Unfortunately, there is no absolute protection here - which is why regular backups are still essential.

Areas of application for ECC RAM - advantages of used memory modules

ECC technology is now so advanced that it can recognise and correct memory errors in real time. It is important to choose reputable professional hardware when selecting server RAM. This is because every component has an impact on the performance and stability of the system and therefore also (directly or indirectly) influences the reliability of the server.

And this is precisely where the ‘ECC advantage’ of server memory modules comes into its own: ECC memory is designed for long-term operation and has a long service life - large companies often replace their server hardware after just a few years of use without really utilising this potential. Those who rely on used ECC RAM can therefore achieve considerable cost savings without having to compromise on quality and reliability. Provided: You buy remanufactured ECC memory from IT remarketing professionals like us.

Sustainability to go comes on top - because the reuse of used hardware reduces electronic waste and is therefore not only economically but also ecologically sensible. There are various areas of application in which ECC-RAM is virtually indispensable. These include data centres and cloud servers, for example, where maximum data reliability is required and millions of memory operations are performed per second.

ECC modules are just as essential for big data and financial analyses, simulations and scientific research. This is because any memory error can also deliver erroneous results. And, of course, in the field of artificial intelligence, machine learning and high-performance computing (HPC). Here, not only error-free calculation, but also extremely stable performance is crucial.
